| Application |

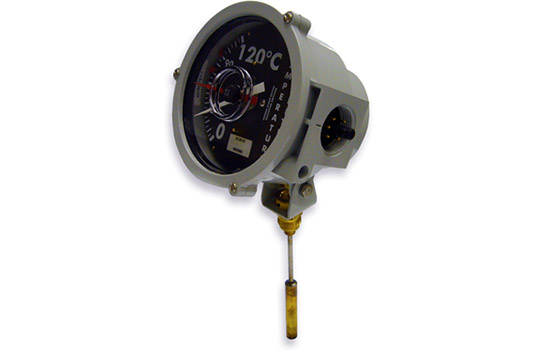

| For temperature indication with integrated control and alarm functions. Designed for use where the point of measurement (the well or pocket) is on the side or top of the apparatus and can be easily viewed |
| Features |
- Bourdon tube measurement with resettable maximum pointer
- Flexible head for side or top mount applications
- Up to 2 fully adjustable switches (contacts) and one additional fixed switch for control and alarm functions
- 5 inch (130mm) dial face with an angular dial span of 120° for easy viewing
|
| Options |
- Temperature ranges applicable for oil (liquid) or winding (winding simulation requires heated well or QUALITROL Thermal plate)
- Up to 3 switches
- Tank connection style and probe length, compatible well
- Electrical connection type, connector cable type and wire colors
|
| Download Brochure : QUALITROL121.pdf |
